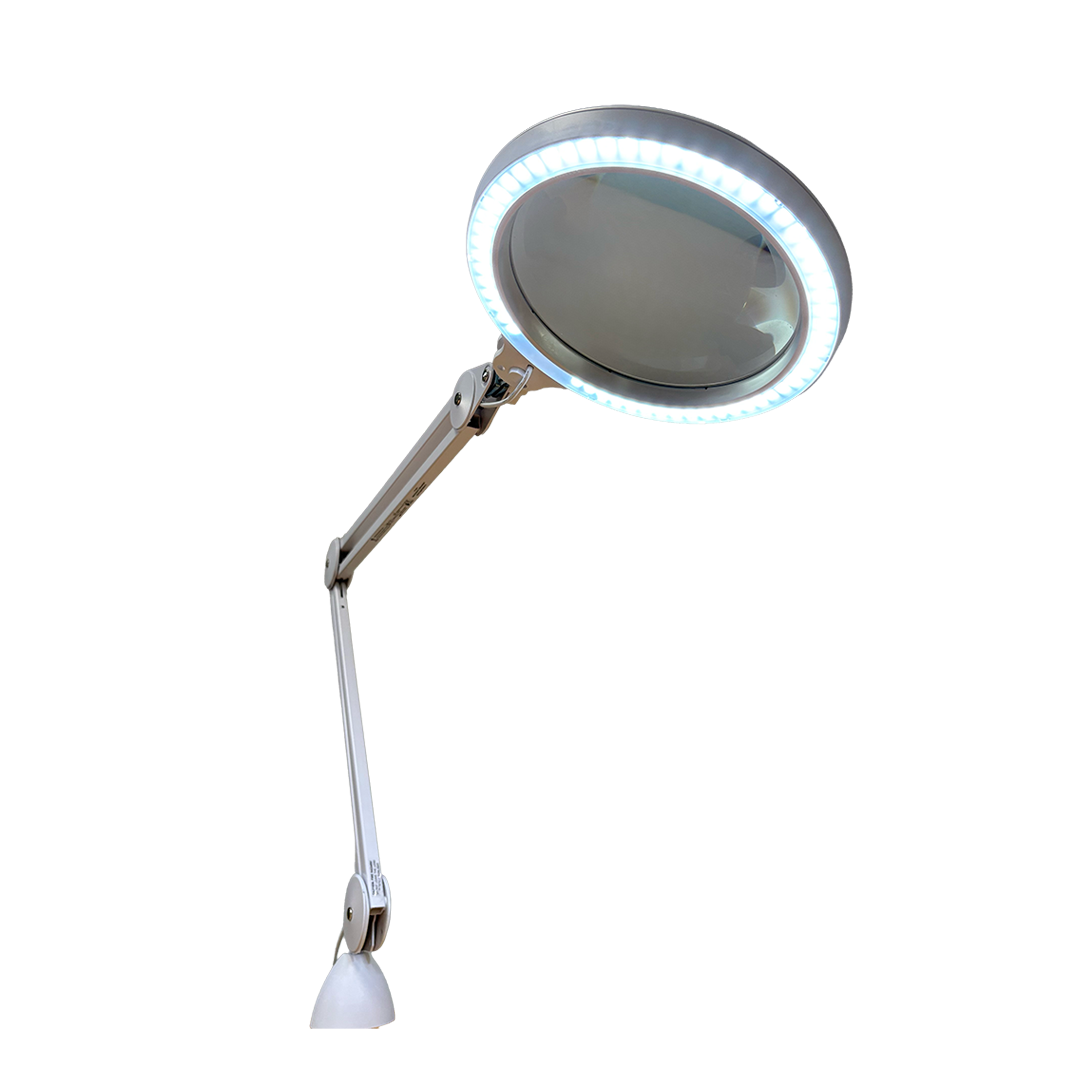

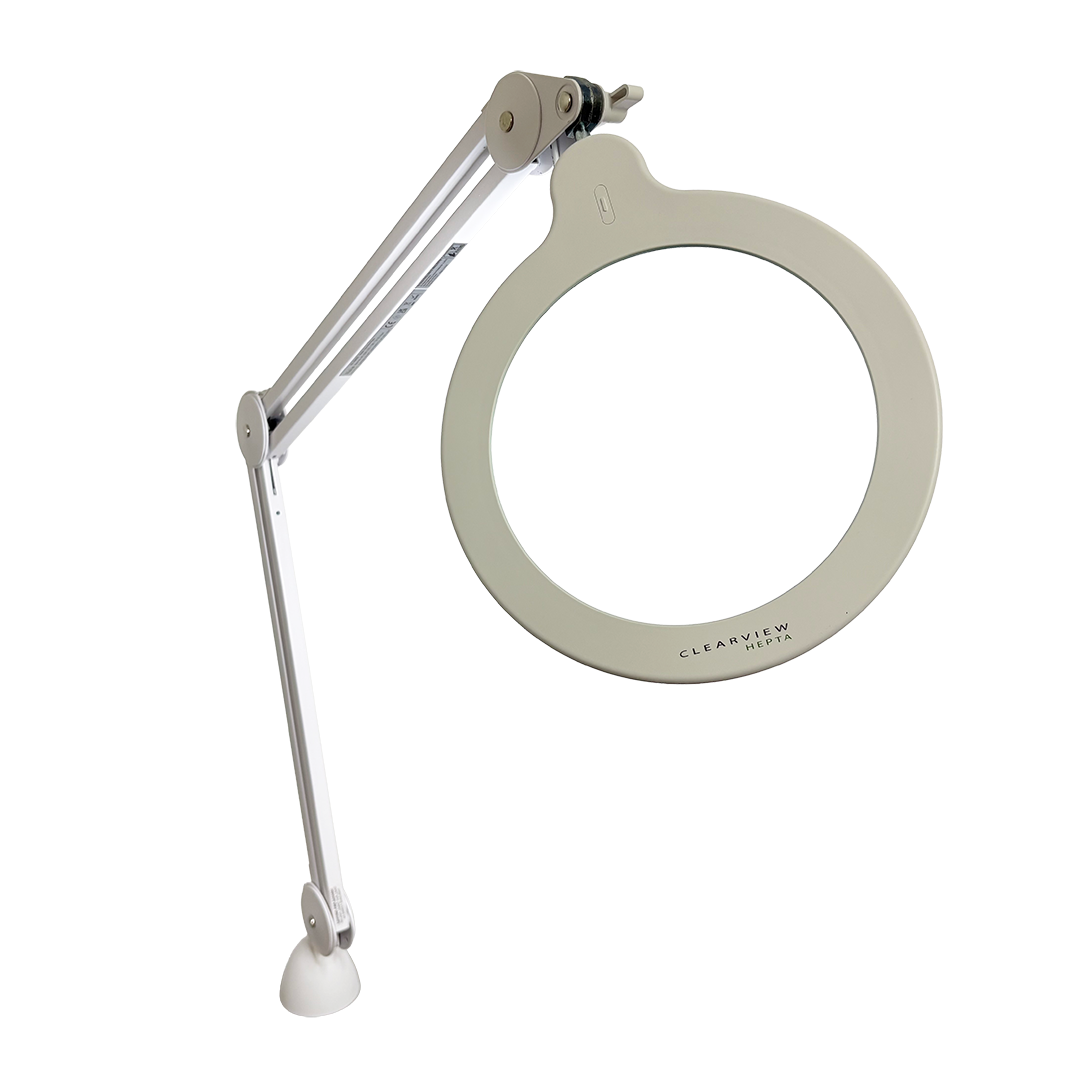

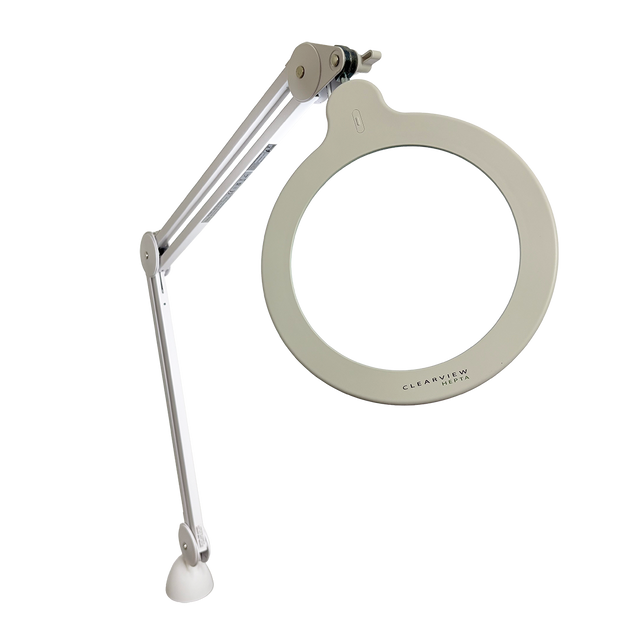

ClearView HEPTA XL magnifier lamp

Name: ClearView HEPTA XL magnifier lamp
Brand: ClearView
SKU: VDM002
Price: 119.0 GBP
Availability: InStock

Extra Large Diameter round lens LED bench magnifier

£119 inc VAT

Tax included Shipping calculated at checkout.

SKU	Title	Description	Price	Add
VDM002	Default Title		£119 inc VAT

Can't find what you're looking for? Contact us for assistance!

Description

HEPTA magnifying lamp provides clear magnification and bright, consistent lighting for day to day assembly tasks. The extra large 7 inch [17.7 cm] glass lens offers 1.75x magnification for checking components, reading markings and supporting fine manual work. The articulated arm and clamp mount keep the unit steady, and the high output LEDs deliver even white light across the working area.

The ClearView HEPTA delivers dependable magnification and illumination for precision assembly work. Its expansive 7-inch glass lens provides 1.75x magnification, ideal for component inspection, marking verification, and detailed manual operations.

The flexible articulated arm combined with a robust clamp mount ensures stability during use, whilst high-output LEDs produce uniform white light distribution across your workspace. Built for consistent performance in demanding technical environments.

Great for Routine assembly checks where a larger viewing area helps,
Reading part labels, wiring identifiers and small printed information
Light rework on assemblies that benefit from clearer visibility
General visual checks during build or adjustment tasks.

ClearView is a range of magnifiers and task lights designed to support everyday assembly, rework and inspection.

Key features

7 inch [17.7 cm] glass lens with 1.75x magnification for routine assembly work
High output LED lighting delivering 5 300 lux at 15 cm
Clear 6 500 K white light with CRI 95 plus for accurate colour and detail
Two brightness levels to suit different materials and surfaces
Stable clamp mount and articulated arm for steady positioning at the workstation
5 year guarantee

Applications

Routine assembly checks where a larger viewing area helps
Reading part labels, wiring identifiers and small printed information
Light rework on assemblies that benefit from clearer visibility
General visual checks during build or adjustment tasks

Specification

Objective lens	3D (1.75x)
Lens size	Glass lens, 177mm ⌀
Type	Circular
STAYS lens options	4.0D (1x), 6.0D (1.5x), 10.0D (2.5x)
Lumens	770
Illumination	2 brightness levels
Brightness	5300 Lux and 3000 at 15cm
CRI	95+ colour rendition index/th>
Weight	2.9kg
Cable length	2.1m
Max Clamp Opening	75 mm
Energy Consumption	11.5 W

No knobs to tighten or adjust

Always in the right position

Extra Large

7" Diametre lens

FAQ's

What is the difference between 3D and 3X?

Dioptre is the most common unit used for expressing magnification for low magnification optical systems sich as bench magnifiers. It is the same term as is encountered at the optician when calculating magnification for spectacles. 1 dioptre adds 0.25x in magnification. So 3D (3 dioptres) is normal magnification plus 3 lots of 0.25 = 1.75x.

What if I can’t fit the edge clamp to my desk?

The edge clamp has an opening of approximately 75mm. If a desk is too thick for the edge clamp, table bushing and surface mounts are also available.

What are the benefits of having the larger 177mm magnifier lens?

The larger lens size is ideal for tasks requiring a wide field of view and the ability to easily move tools and workpieces underneath it. The primary benefit is improved efficiency and reduced eye strain during time-consuming, detailed work. It is beneficial for arts and crafts, inspection, repair, beauty and aesthetics.
