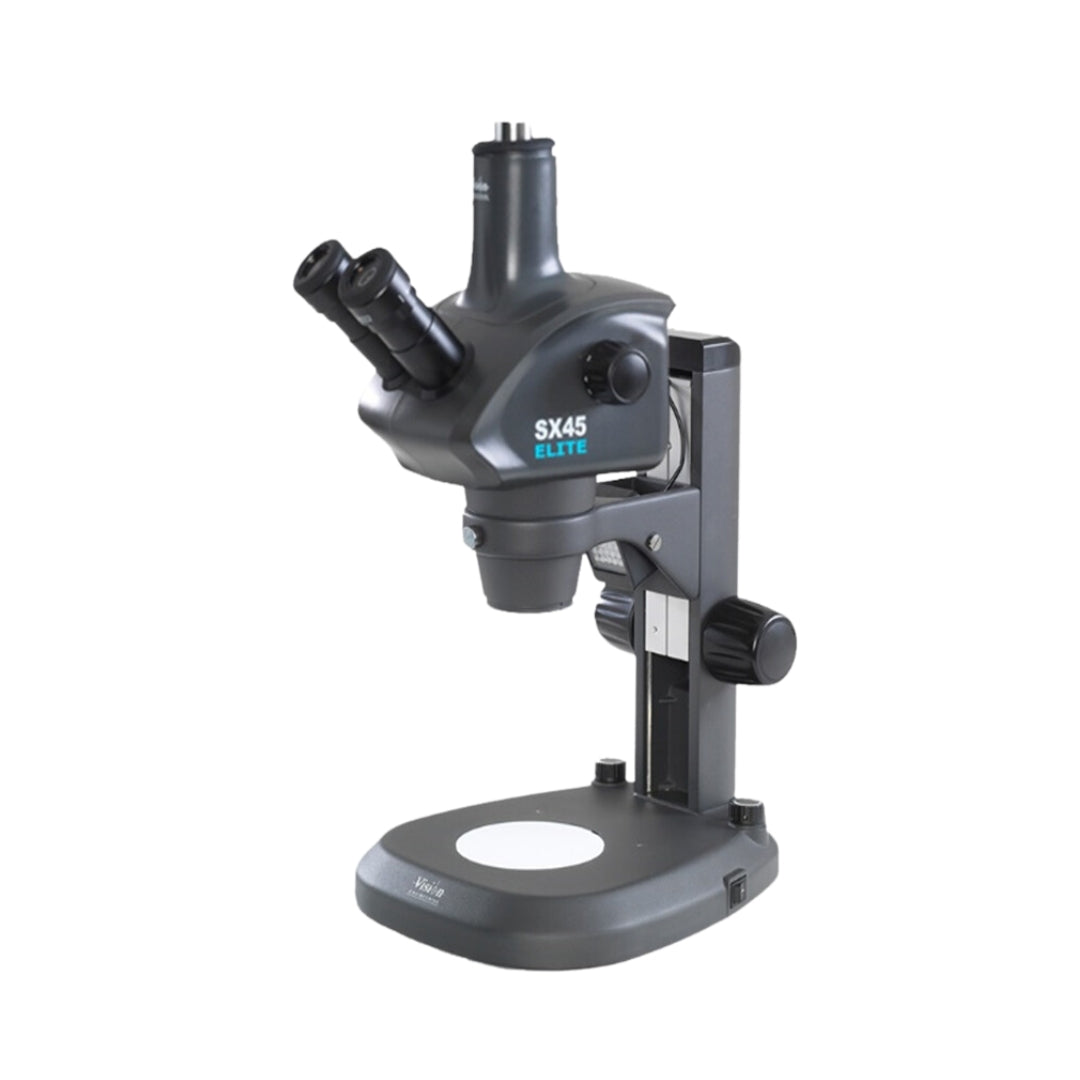

SX45-TR Elite Trinocular stereo microscope with camera (8x - 50x)

£3,458.00 ex VAT
Shipping calculated at checkout.

SKU Title Description Price Add
SX45TRSYS001 Default Title

£3,458.00 ex VAT

Description

Robust high quality microscopes for every application.

The superb SX45-TR Elite trinocular stereo microscope from Vision Engineering will let you see the subject with exceptional clarity and the detail you need.

Our stereo microscopes give you a real feel for depths of surfaces, making it easy and natural to work with tools for assembling, fixing, inspecting or interacting with the subject.

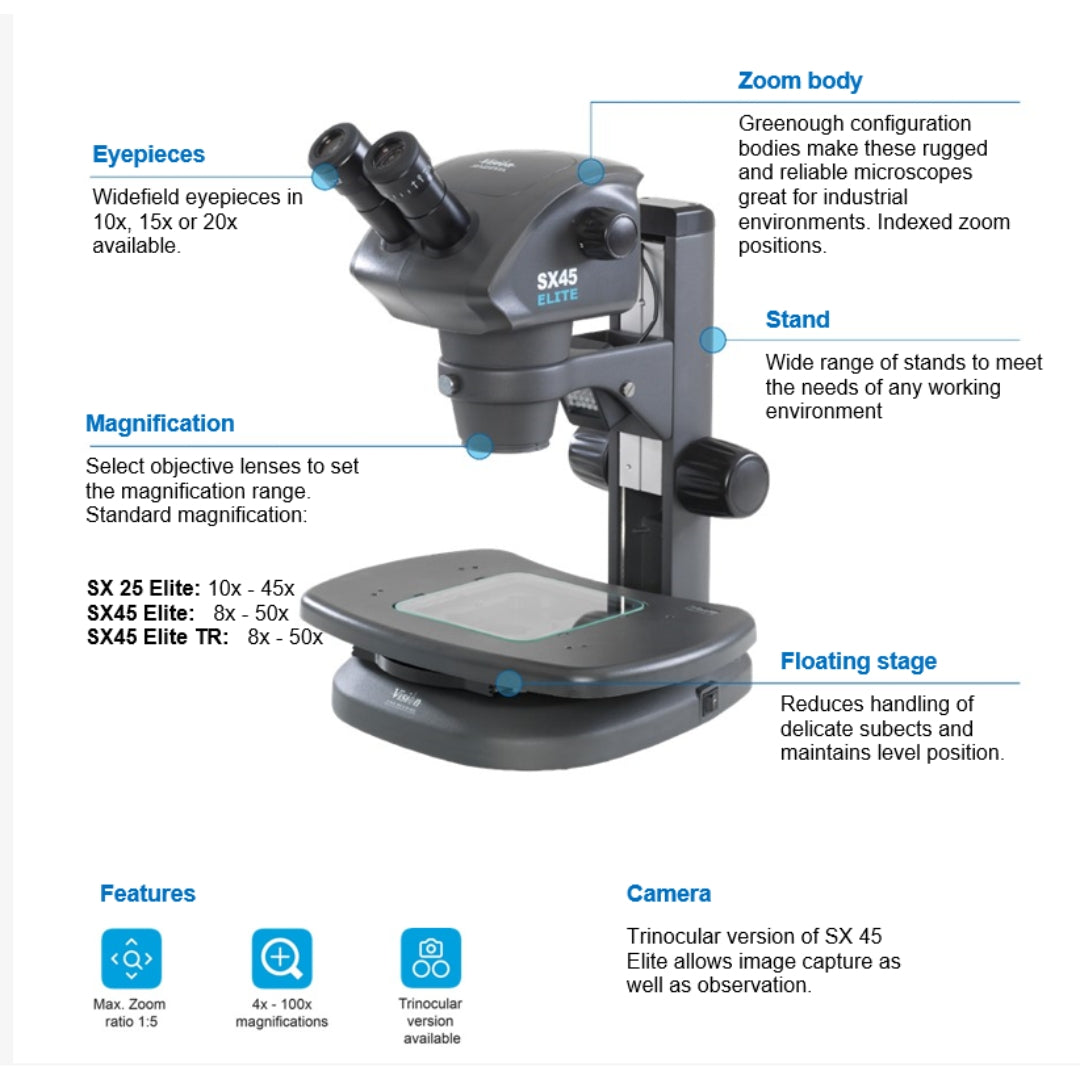

SX Elite’s easy-to-use zoom control combines speedy access to greater visual data with flexibility of operation. Click stop magnification points allow you to recall magnifications quickly, easily and repeatably.

Enhance quality assurance and reduce costs with the SX45-TR Elite trinocular stereo microscope (8x - 50x magnification), featuring a standard objective for precise inspection of moulding defects, surface finish, machining residue, correct assembly, and more.

  • SX45 Elite is equally at home in the lab as a dissecting microscope, in the repair shop or in industrial inspection applications.
  • Share images quickly and efficiently with this camera system which comes complete with  intuitive imaging software.

Specification

Objective lens 1.0x
Zoom range 8x - 50x
Working Distance 115.0 mm
Zoom ratio 6.3:1
Optical principle Greenough
Trinocular head Yes
Camera system included
Image capture Yes
Image software Yes
Stand Bench stand
Illumination incident illumination (overhead, angled) and sub-stage illumination.
Power supply 100v -240v, 50/60Hz

HD image capture

camera and software included

High Resolution

FAQ's

Does this SX45-TR system come with software ?

Yes software is included for viewing, image and video capture.
