Circus LED

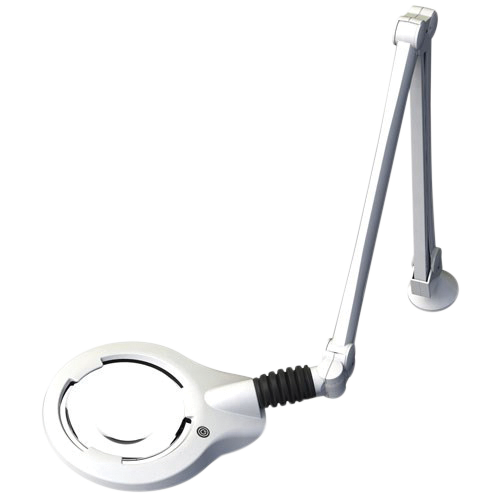

Large Diameter round lens LED bench magnifier

From £560.00 ex VAT
Shipping calculated at checkout.

Version
SKU Title Description Price Add
CIL026702 Circus LED 3.5D 3,5 dioptre, 3-pivot K-arm 1000mm radius, LED ring dimmable, white. UK plug.

£560.00 ex VAT

CIL026703 Circus LED 5D 5,0 dioptre, 3-pivot K-arm 1000mm radius, LED ring dimmable, white. UK plug.

£583.00 ex VAT

Description

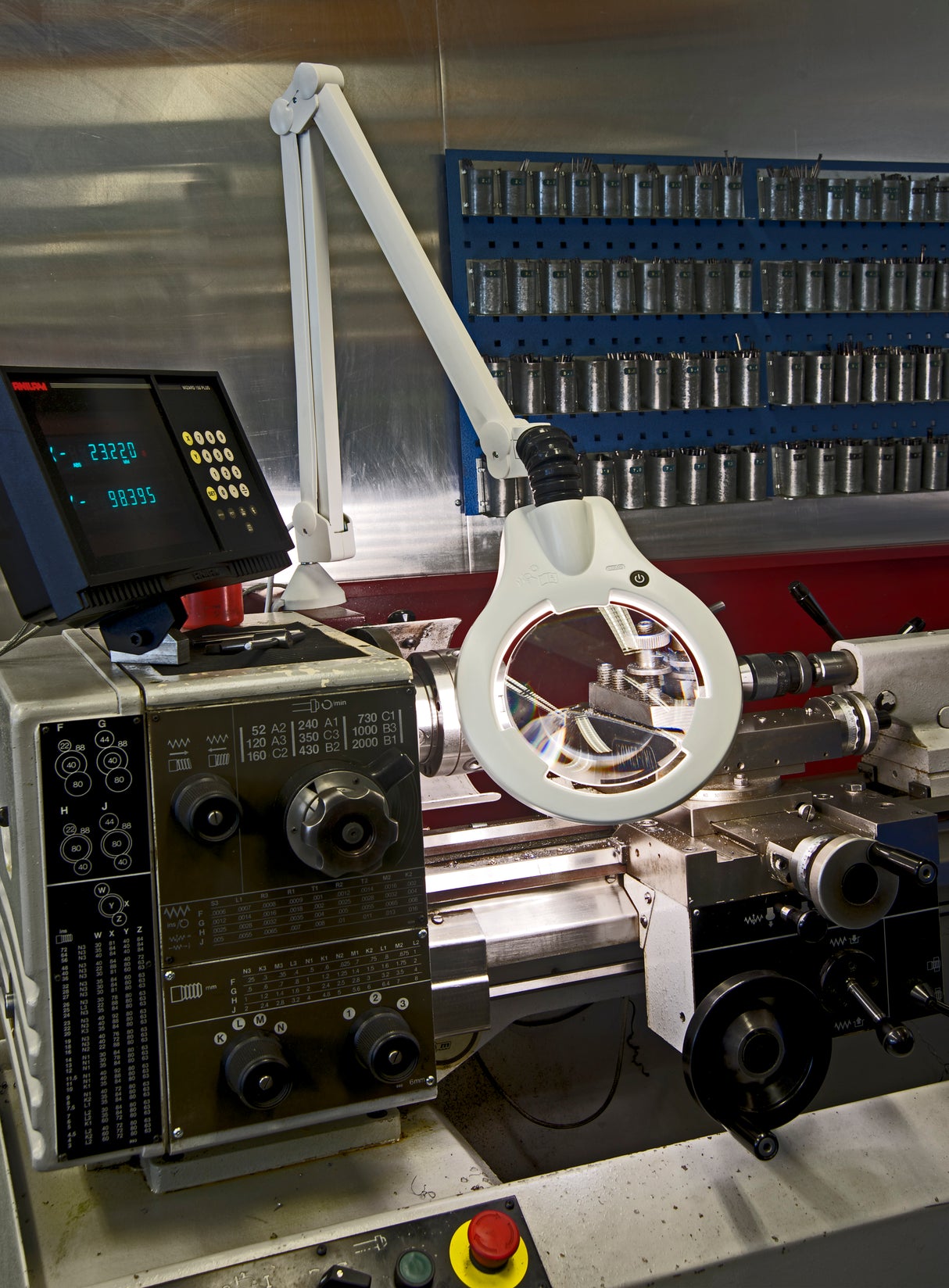

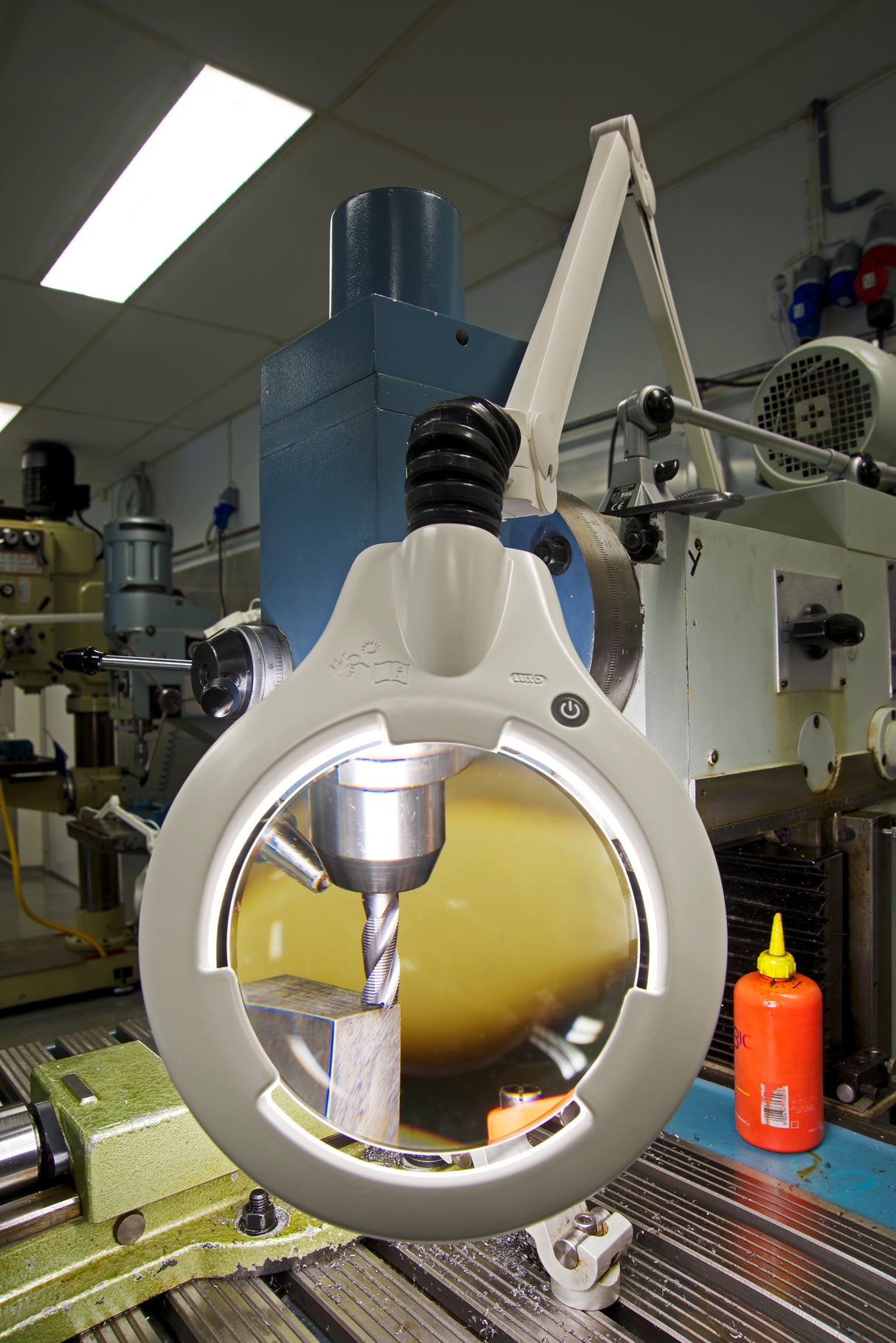

Circus LED is specially designed to withstand the rigours of everyday use in industrial and manufacturing applications where foreign object debris (FOD) is a concern.

The fully enclosed neck and internal spring-balanced arm make the Circus LED ideal for environments where cleanliness and sanitation are sought.

No knobs to tighten, nothing to adjust. Circus LED has a highly flexible, self-balancing lamp head allowing it to be positioned vertically, horizontally and laterally.

Circus LED bench magnifiers incorporate the same design excellence adopted throughout Vision Engineering’s award-winning stereo microscopes, providing maximum clarity, flexibility and stability.

Our Vision LUXO magnifiers are specially designed to always stay in the right position without drifting. The arms are balanced by spring systems which ensure smooth and easy positioning – no knobs to tighten, nothing to adjust.

Call out features:

  1. 1.88 – 4.75x Magnification
  2. ESD and UV Variants
  3. Full HD Camera Option

Specification

Objective lens 3.5D (1.88x), 5.0D (2.25x)
Lens size White crown glass lens, 165mm ⌀
Type Circular

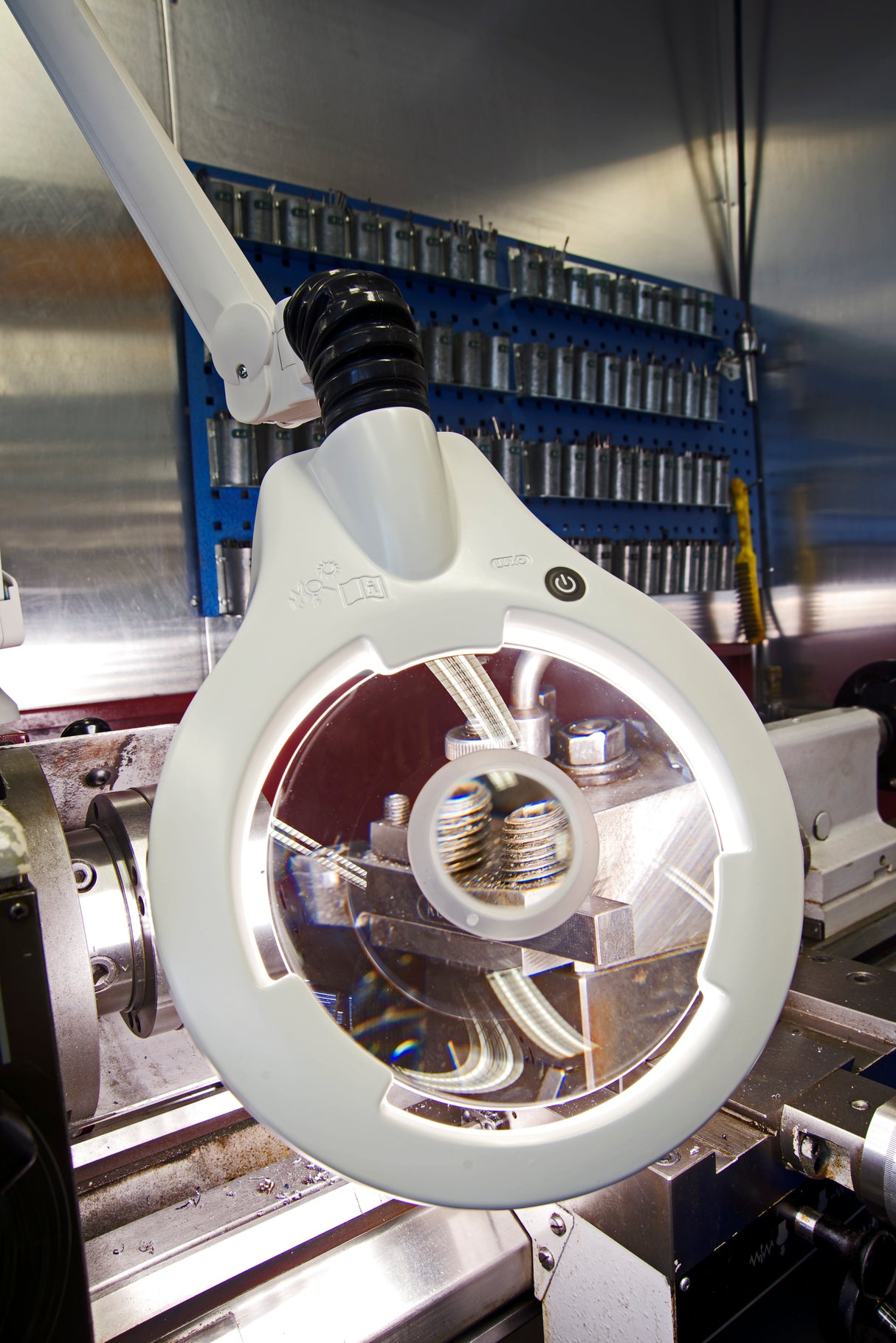

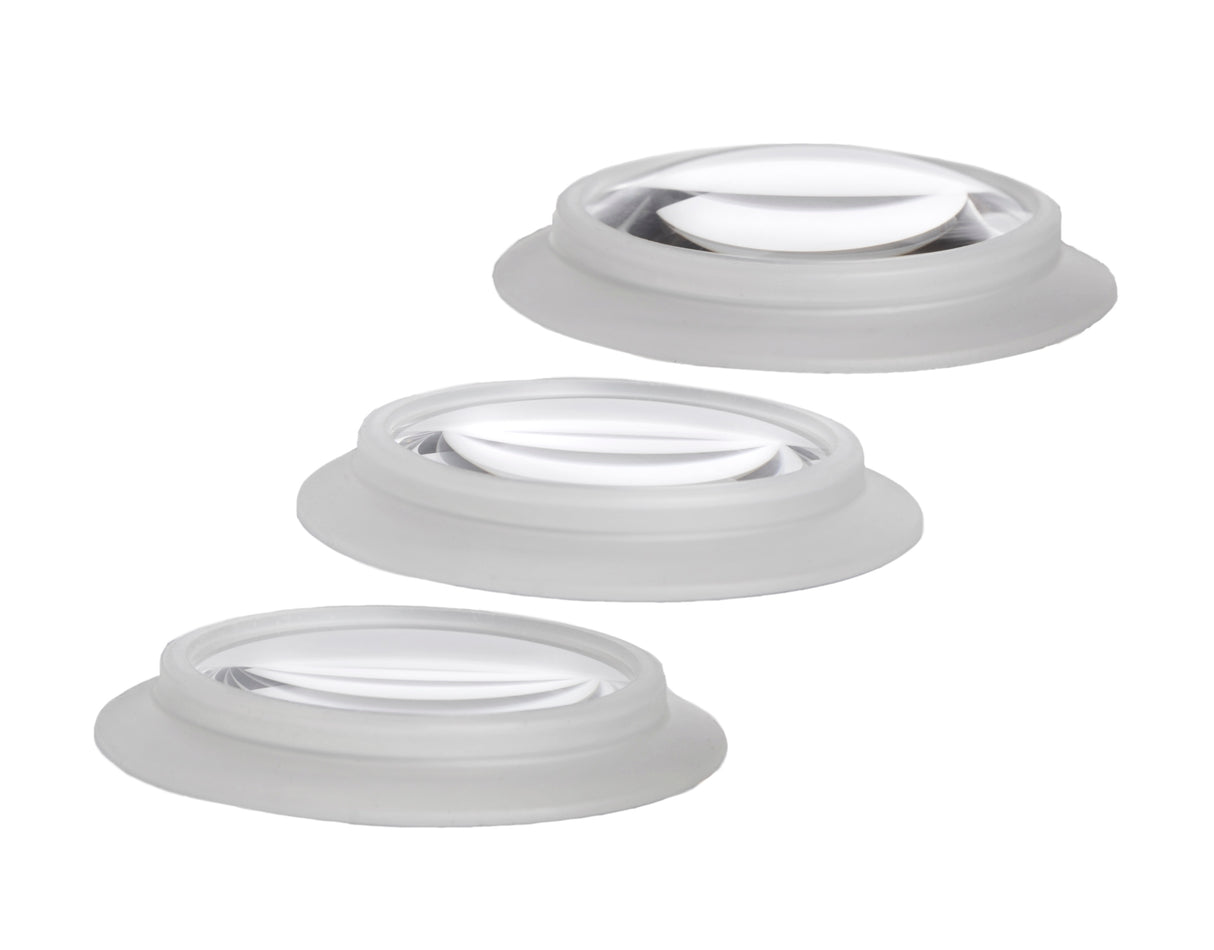

STAYS lens options 4.0D (1x), 6.0D (1.5x), 10.0D (2.5x)

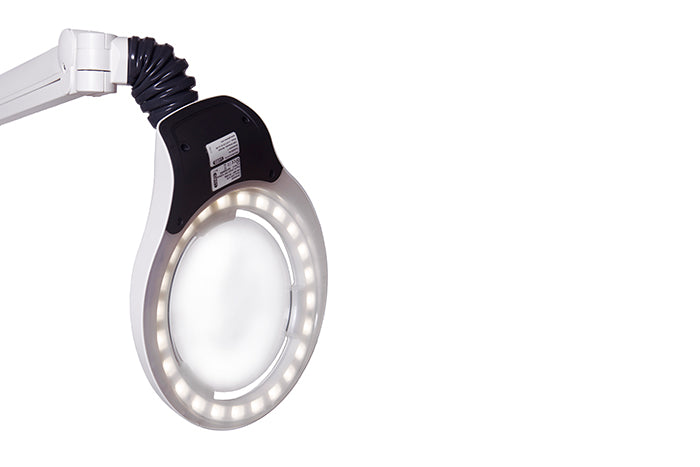

Illumination Dimming Seamless
CRI 90 colour rendition index/th>
Brightness 3830 lux 279mm focal length
Body material Die-cast aluminium housing

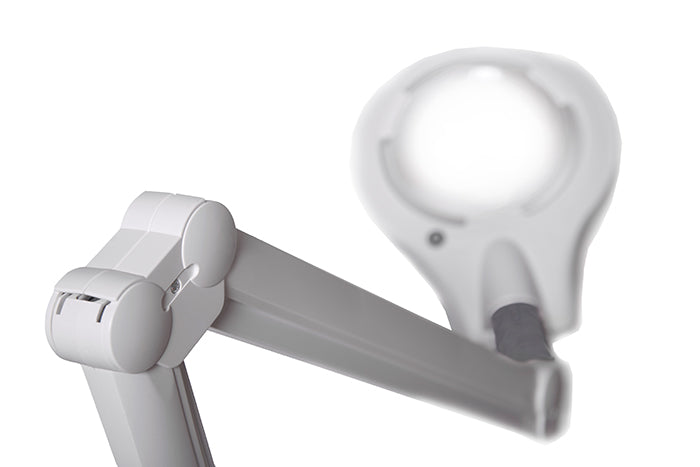

Arm technology Heavy-duty internal spring 41˝ (1050mm) parallel, three-pivot K-arm.
Charging Plug-in USB
Timer and dimming Step dimming 0-50-100%. Auto shut-off function.

Magnification

CIRCUS LED Magnification
Primary lens dioptre Secondary lens dioptre Total magnification Focal length
3.5 1.88x 11" (285mm)
3.5 4.0 2.88x 5" (130mm)
3.5 6.0 3.38x 4" (105mm)
3.5 10.0 4.38x 3" (75mm)
5.0 2.25x 8" (200mm)
5.0 4.0 3.25x 4.3" (110mm)
5.0 6.0 3.75x 3.5" (90mm)
5.0 10.0 4.75x 2" (50mm)

No knobs to tighten or adjust

Always in the right position

Maximum clarity

Crown glass lens

FAQ's

What is the difference between 3D and 3X?

Dioptre is the most common unit used for expressing magnification for low magnification optical systems sich as bench magnifiers. It is the same term as is encountered at the optician when calculating magnification for spectacles. 1 dioptre adds 0.25x in magnification. So 3D (3 dioptres) is normal magnification plus 3 lots of 0.25 = 1.75x.

What if I can’t fit the edge clamp to my desk?

The edge clamp has an opening of approximately 55mm. If a desk is too thick for the edge clamp, table bushing and surface mounts are also available.

What is the shadeneck?

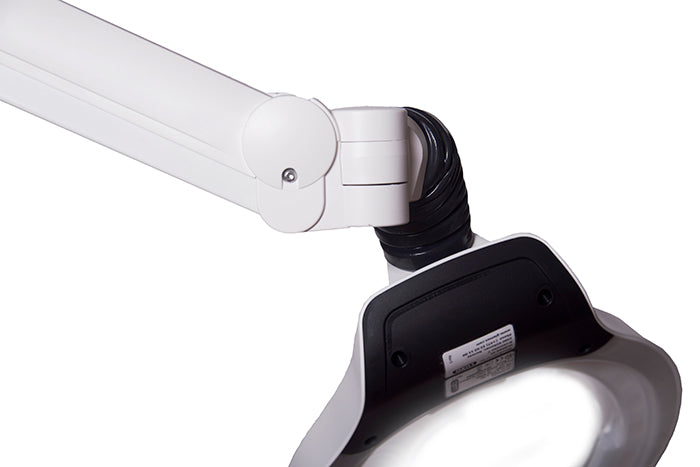

The shadeneck is the design feature which covers the neck mechanism with a special gator to prevent FOD falling on the subject. The shadeneck removes the need for locking screws and knobs as it perfectly balances the head whatever the position.
