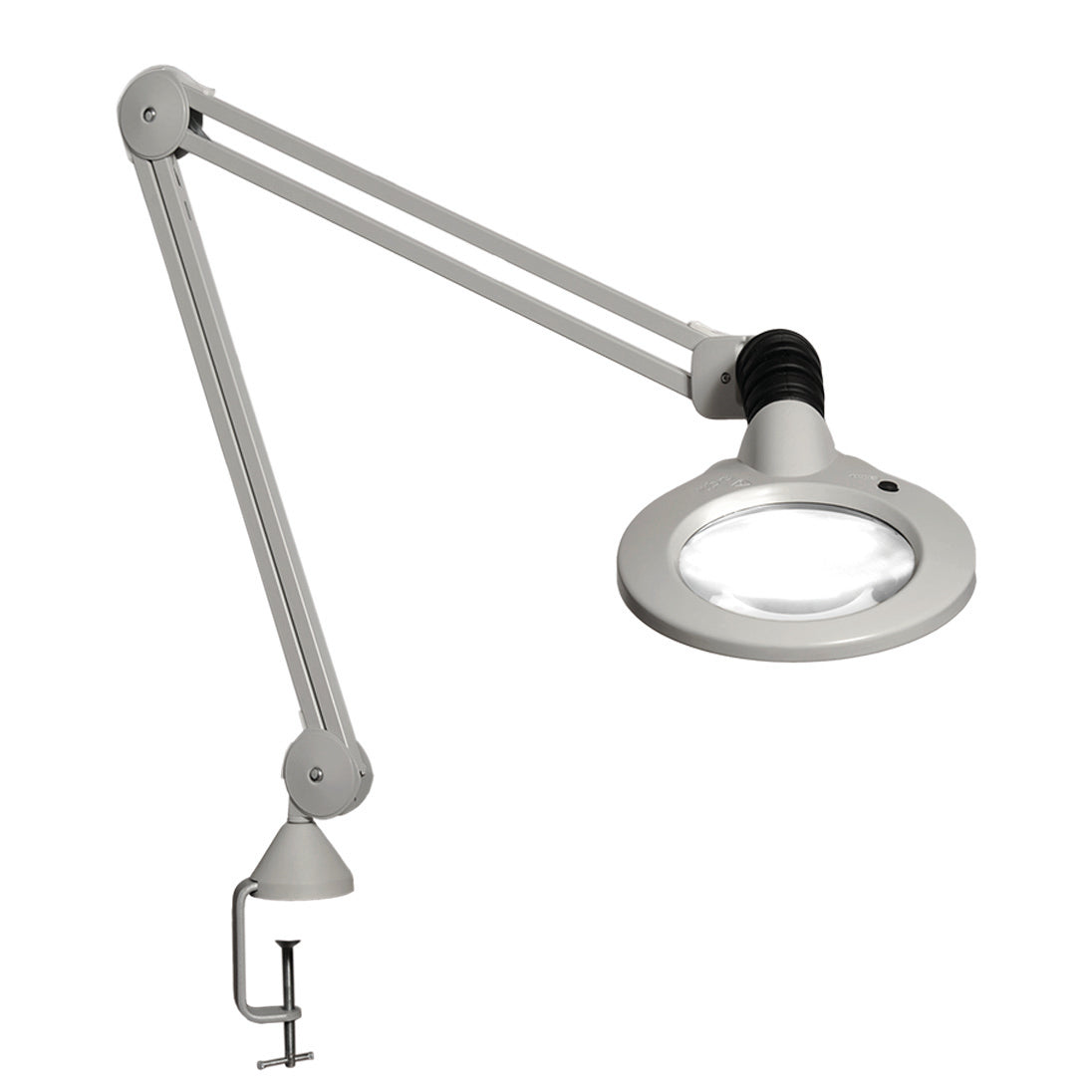

KFM LED

KFM LED and KFM LED ESD models have a robust all-metal construction with sleek design, a flexible arm and excellent light output. It is suitable for all industrial applications.

The flexibility of the joint between lamp’s head and the arm makes exact positioning very easy. The quality of the LEDs allows for virtually shadow-free magnification and excellent colour rendering.

KFM LED ESD is designed to dissipate static charges as they occur, in a controlled manner.

Objective lens	3.5D (1.88x), 5.0D (2.25x)
Lens size	5”(127mm) white crown glass lens.
Type	Circular
STAYS lens options	4.0D (1x), 6.0D (1.5x), 10.0D (2.5x)
Illumination	2 x semi-circular 9W LED modules
CRI	80 colour rendition index/th>
Brightness	3000 lux at 13” (330mm) focal length
Body material	Steel arm, aluminium head
Arm technology	Heavy-duty internal spring 41˝ (1050mm) parallel, three-pivot K-arm.
Timer and dimming	The LED light modules are dimmable 1-100%. Auto shut-off function.
Warranty	5 years

Magnification

KFM LED Magnification
Primary lens dioptre	Secondary lens dioptre	Total magnification	Focal length
3.0		1.75x	13.0" (330mm)
3.0	4.0	2.75x	5.5" (140mm)
3.0	6.0	3.25x	4.3" (110mm)
3.0	10.0	4.25x	2.8" (70mm)
3.0	10.0	4.25x	2.8" (70mm)
5.0		2.25x	8" (200mm)
5.0	4.0	3.25x	4.3" (110mm)
5.0	6.0	3.75x	3.5" (90mm)
5.0	10.0	4.75x	2" (50mm)
