SX25 Elite stereo microscope, 1.0x eyepiece (10x - 45x)

Robust, high quality microscopes for every application.

The superb SX25 Elite Greenough stereo microscope from Vision Engineering will let you see the subject with exceptional clarity and the detail you need.

Our stereo microscopes give you a real feel for depths of surfaces, making it easy and natural to work with tools for assembling, fixing, inspecting or interacting with the subject.

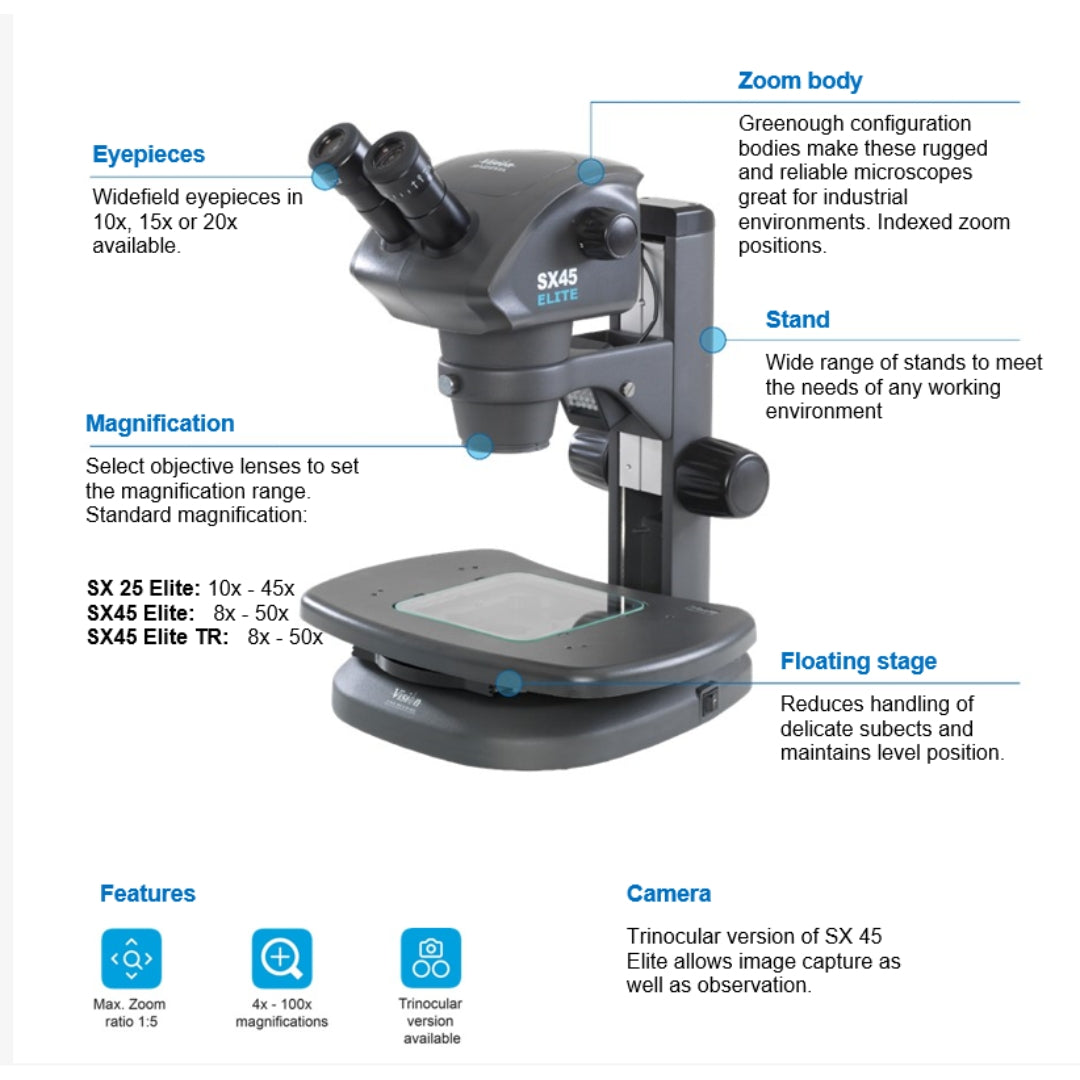

SX Elite’s easy-to-use zoom control combines speedy access to greater visual data with flexibility of operation.

Click stop magnification points allow you to recall magnifications quickly, easily and repeatably.

Enhance quality assurance and reduce costs with the SX25 Elite stereo microscope (x10 - x45), featuring a standard eyepiece for precise inspection of moulding defects, surface finish, machining residue, correct assembly, and more.

SX25 Elite is equally at home in the lab as a dissecting microscope, in the repair shop or in industrial inspection applications.

Objective lens	1.0x
Zoom range	10x - 45x
Working Distance	97 mm
Zoom ratio	4.5:1
Optical principle	Greenough

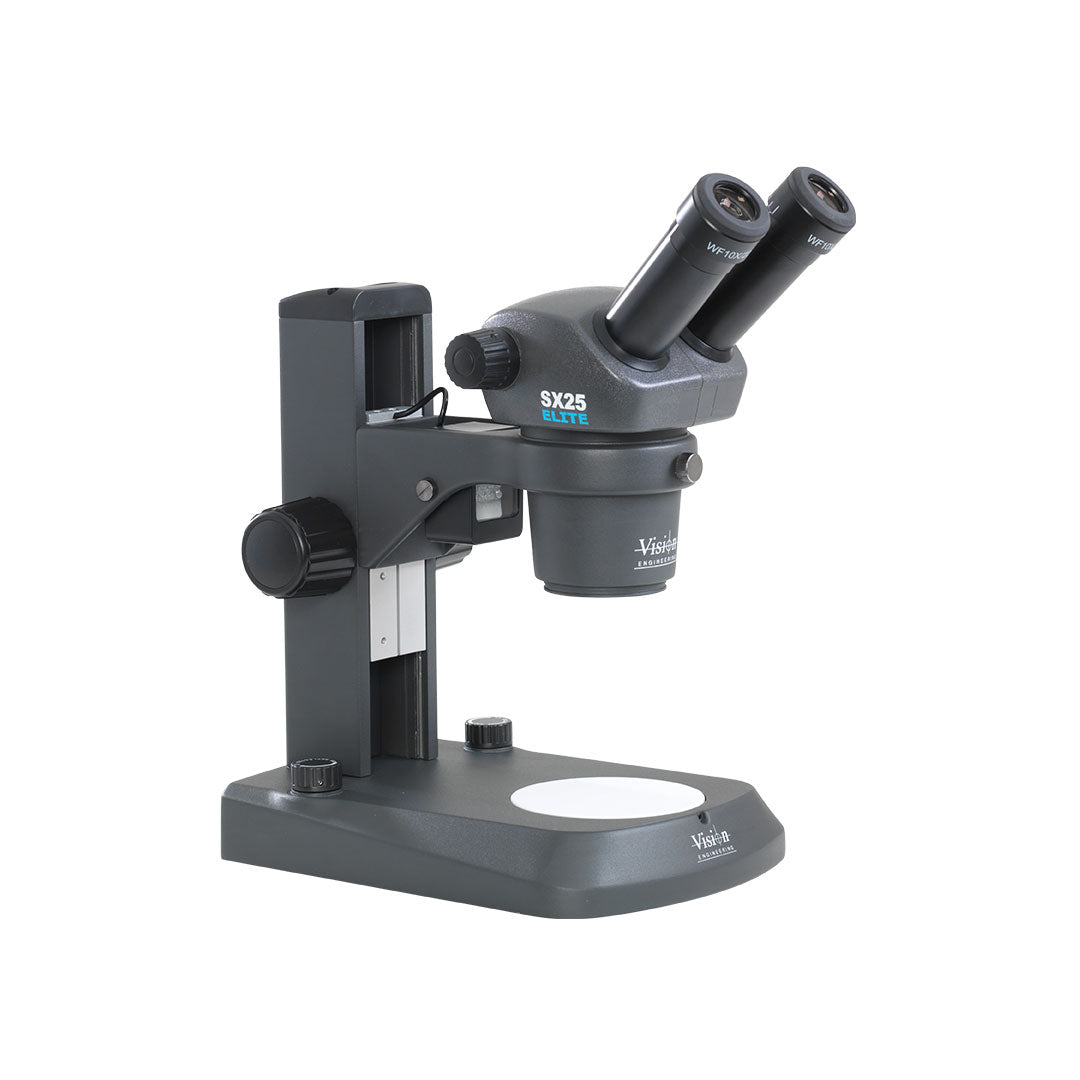

Stand	Bench stand
Illumination	incident illumination (overhead, angled) and sub-stage illumination.
Power supply	100v -240v, 50/60Hz

Magnification

Standard magnification range	x10 - x45
Min./Max. magnification range	x5 - x180
