Wave LED ESD

The quality of the WAVE LED starts with its high performance optical glass lens to provide superb clarity and less distortion than plastic lens bench magnifiers.

The Wave LED ESD magnifier provides shadow-free magnification and 3D viewing for precise inspection and rework tasks, with independent left and right illumination controls. Experience the convenience of easily selectable left/right light control with Wave LED ESD.

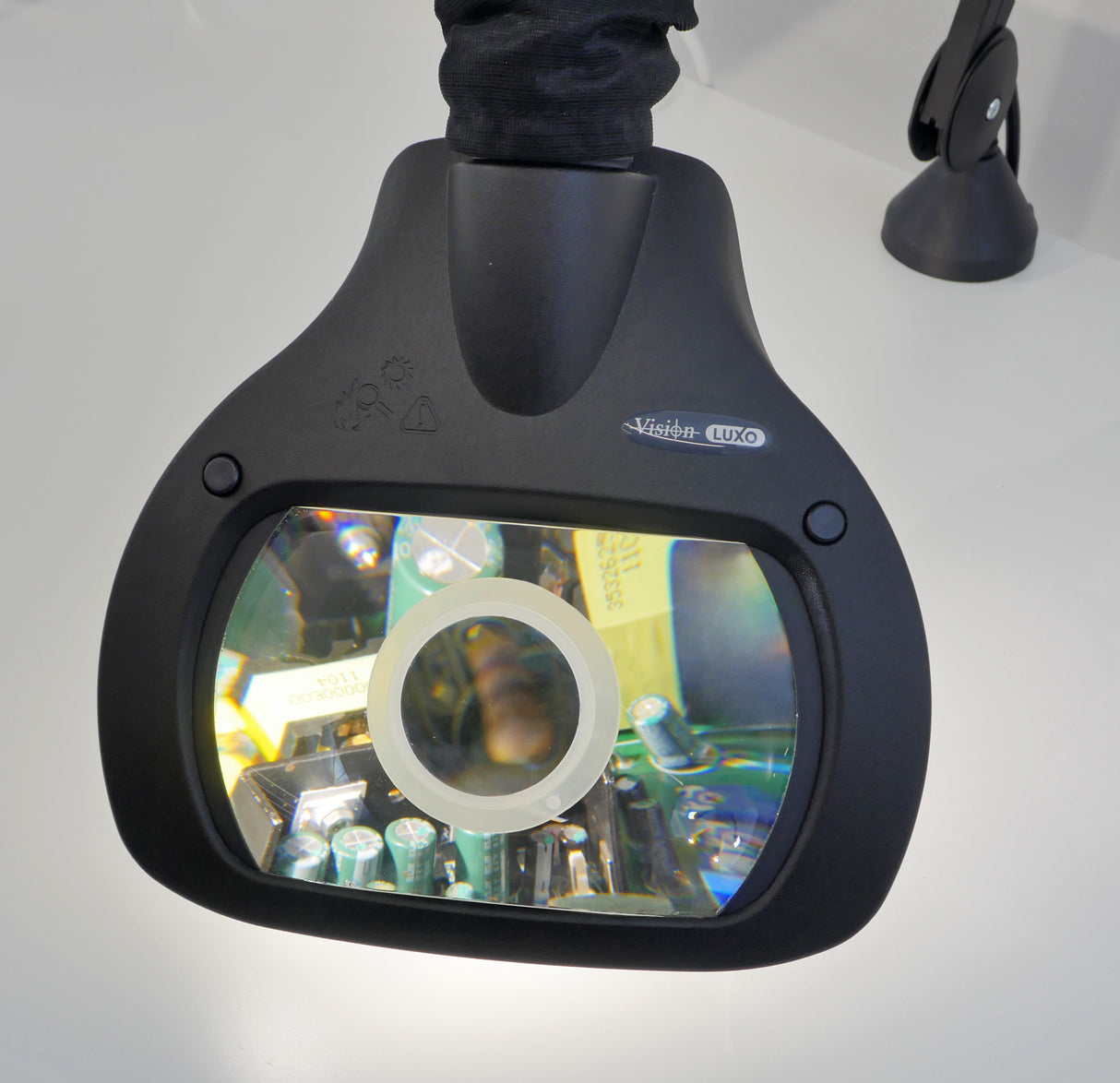

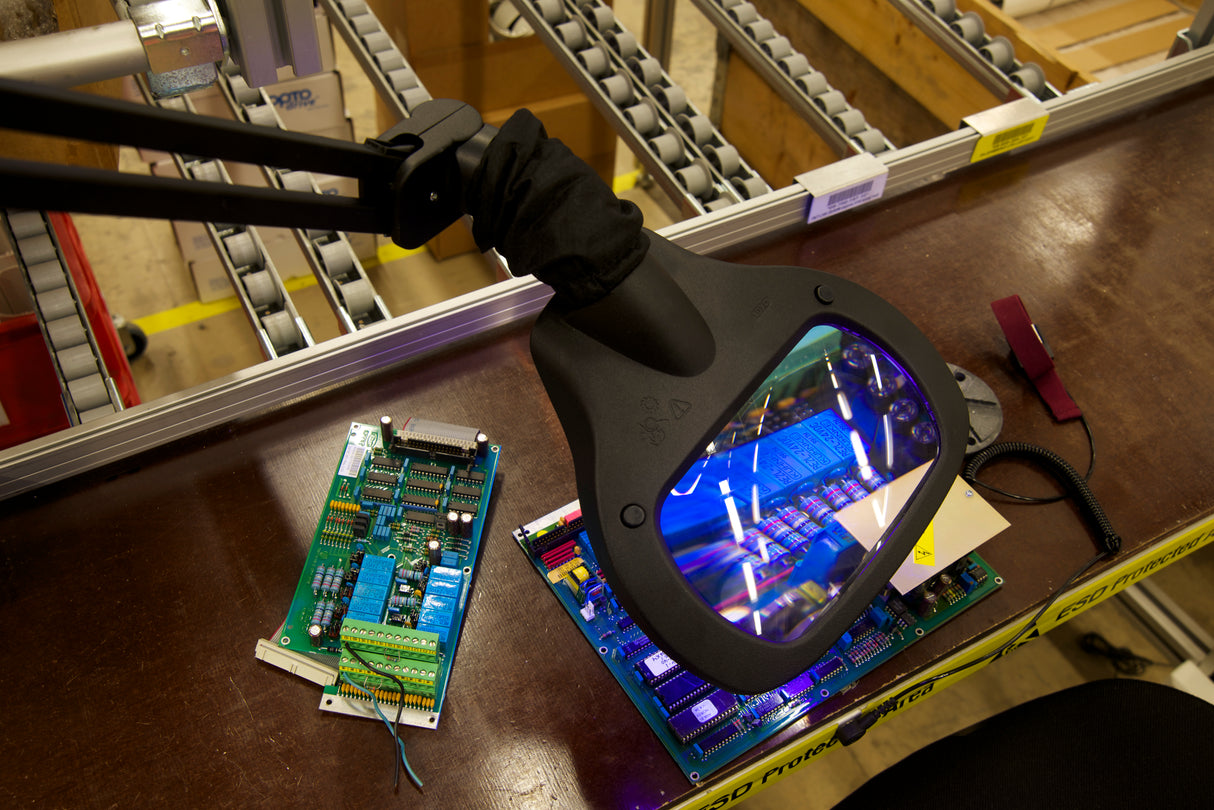

The 3D-feature is especially useful when working with circuit boards and similar delicate objects in inspection and rework applications.

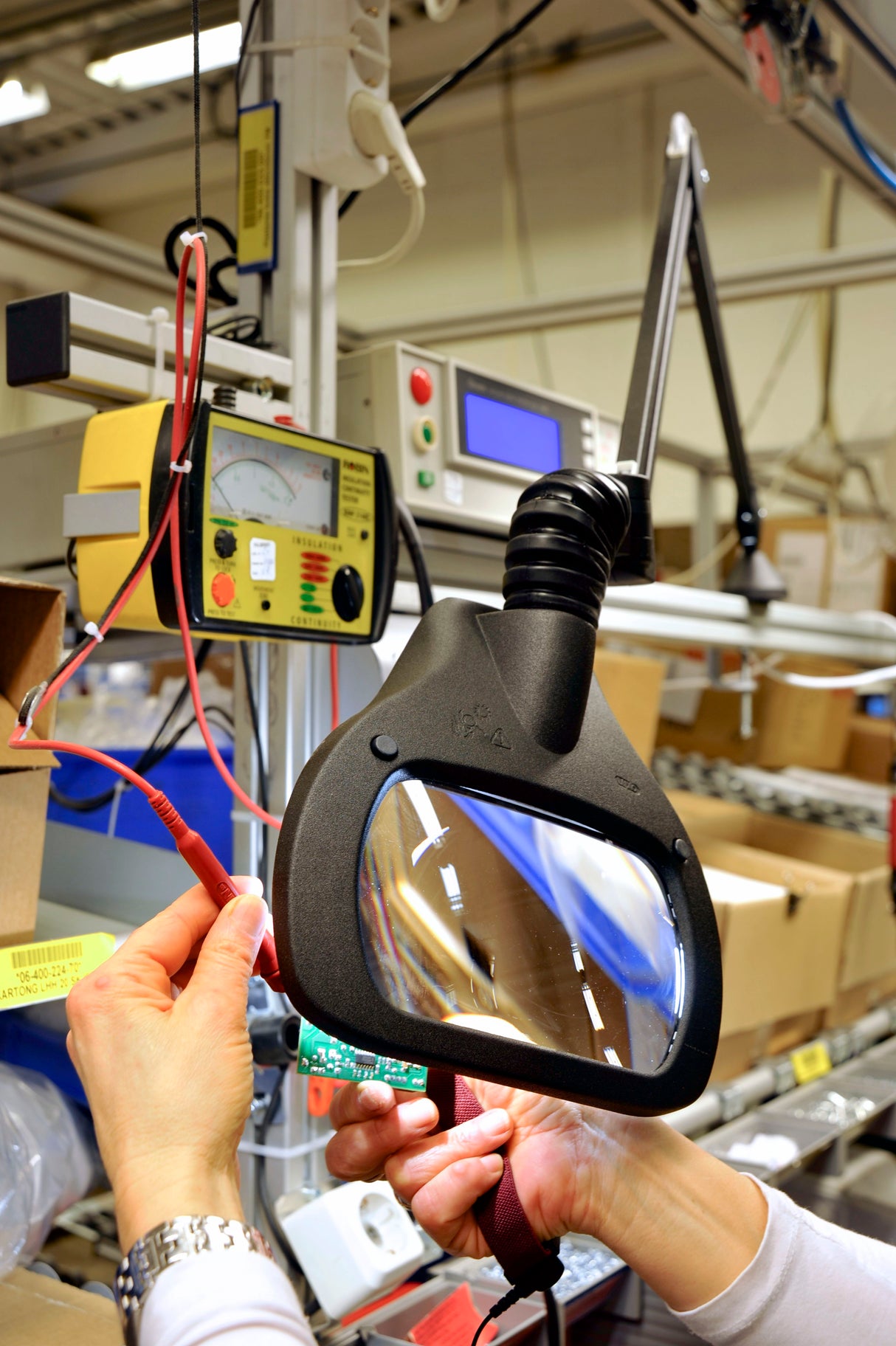

Wave LED ESD has been designed for industrial applications where electrostatic discharges can damage electronic components.

Always stay in the position

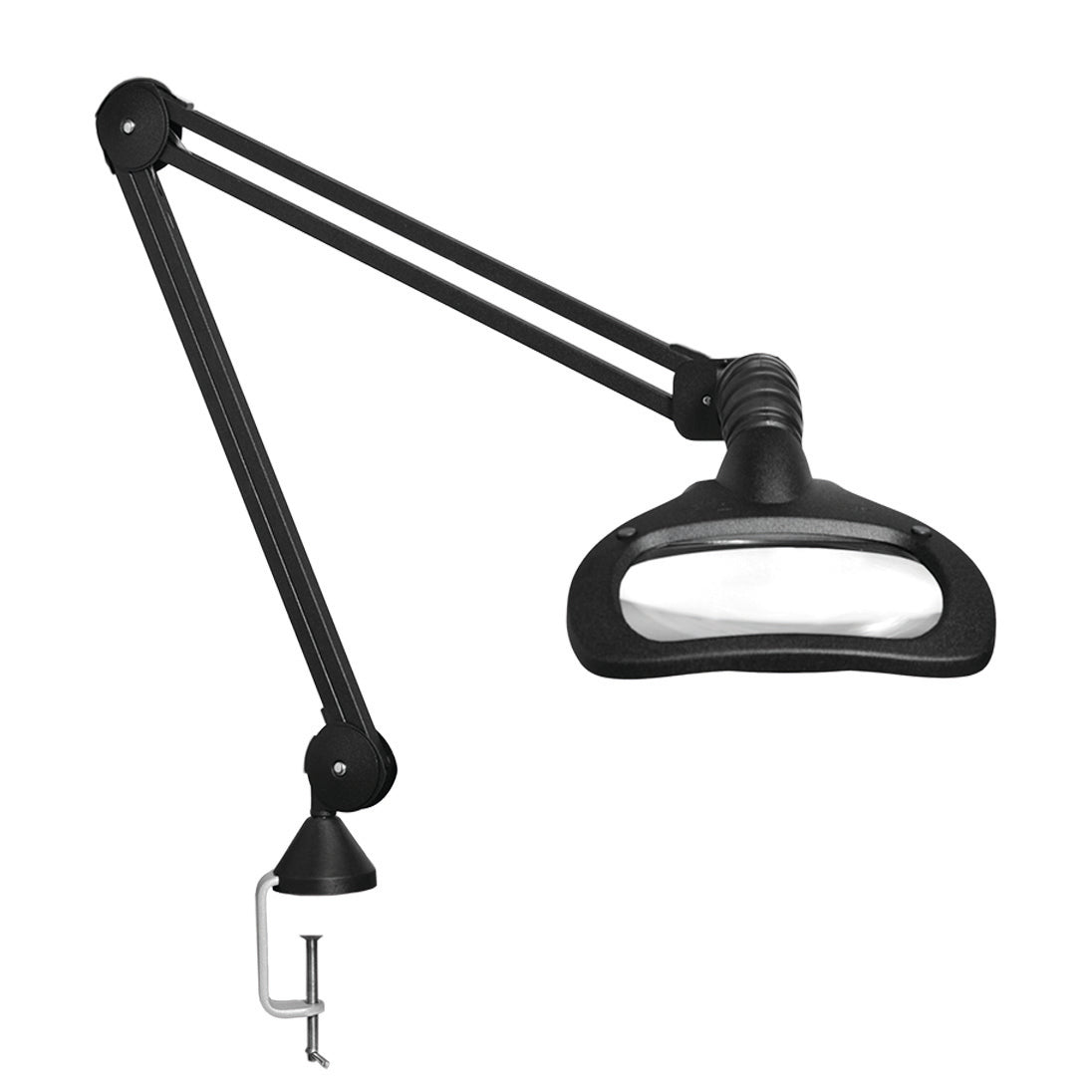

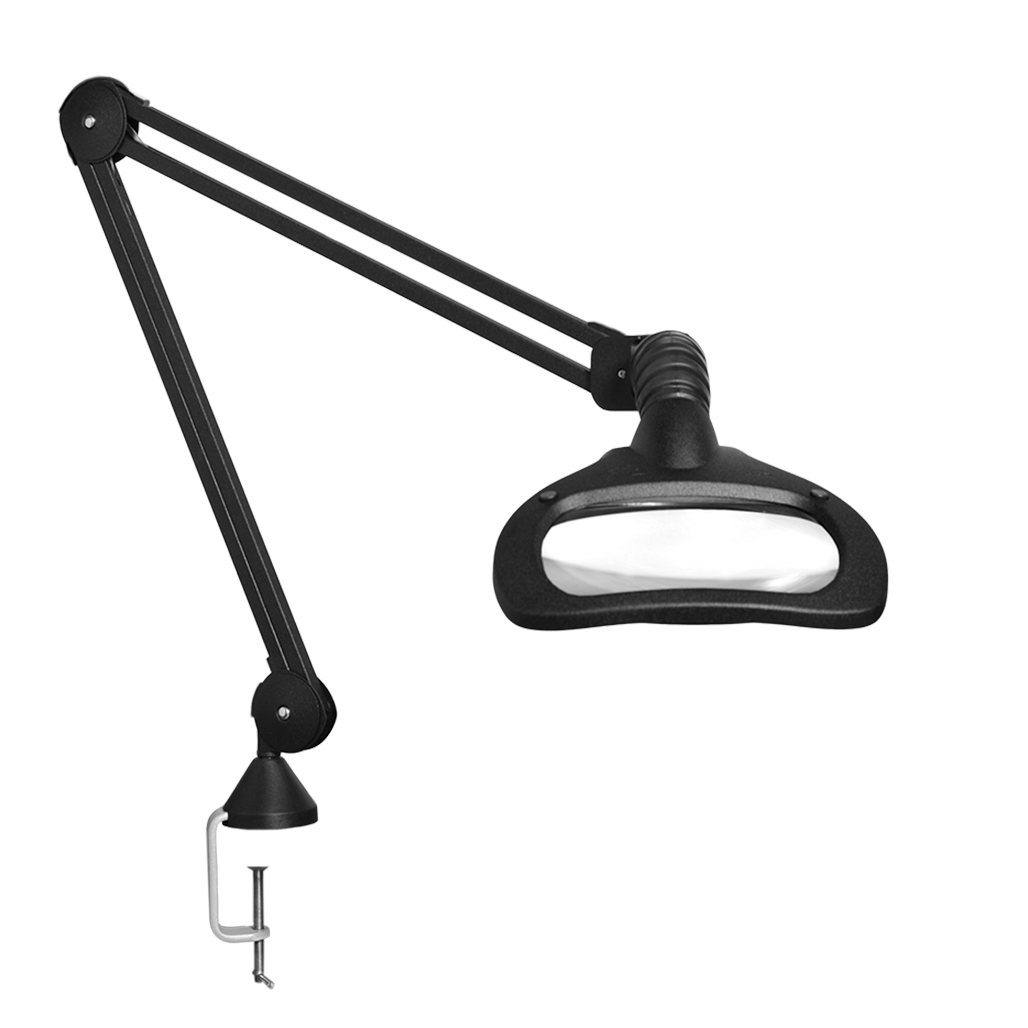

Our Vision LUXO magnifiers are specially designed to always stay in the right position without drifting. The arms are balanced by spring systems which ensure smooth and easy positioning – no knobs to tighten, nothing to adjust.

The fully-enclosed neck design is ideal for mechanical, electronics, circuit boards, dental and jewellery and other precision applications.

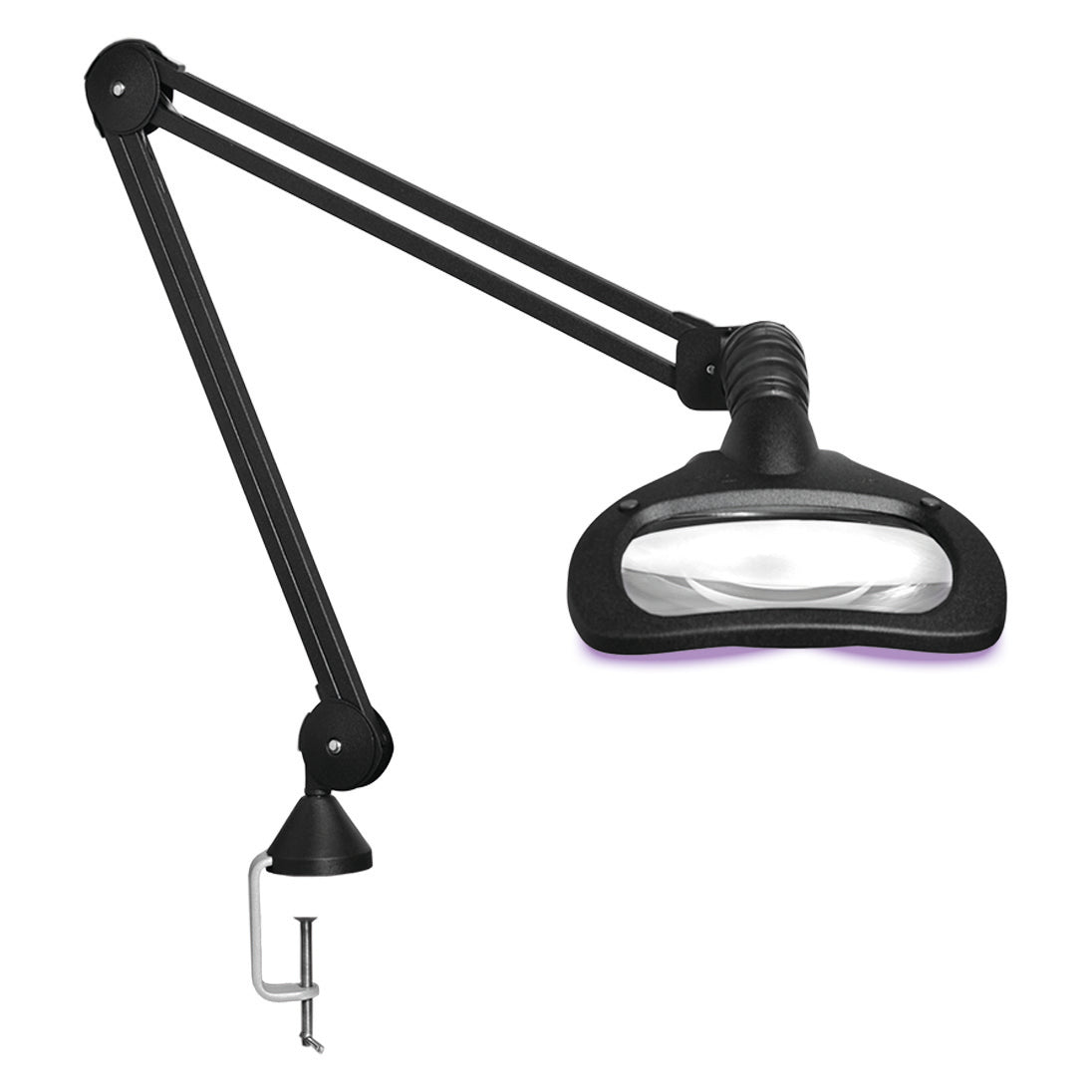

ESD and UV options available.

Call out features:

1. 4.75x Magnification
2. ESD and UV Variants
3. Full HD Camera Option

Objective lens	3.5D (1.88x), 5.0D (2.25x)
Lens size	White crown glass lens, 171mm x 114mm
Type	Regtangular
STAYS lens options	4.0D (1x), 6.0D (1.5x), 10.0D (2.5x)
Illumination	Selectable left / right illumination
CRI	90 colour rendition index/th>
Brightness	3830 lux 279mm focal length
Body material	Steel arm, aluminium head
Arm technology	Heavy-duty internal spring 41˝ (1050mm) parallel, three-pivot K-arm.
Timer and dimming	Step dimming 0-50-100%. Auto shut-off function.

Magnification

WAVE LED Magnification
Primary lens dioptre	Secondary lens dioptre	Total magnification	Focal length
3.5		1.88x	11" (285mm)
3.5	4.0	2.88x	5" (130mm)
3.5	10.0	4.38x	3" (75mm)
5.0		2.25x	8" (200mm)
5.0	4.0	3.25x	4.3" (110mm)
5.0	6.0	3.75x	3.5" (90mm)
5.0	10.0	4.75x	2" (50mm)
5.0	10.0	4.75x	2" (50mm)
