Wave LED UV
SKU | Title | Description | Price | Add |
---|---|---|---|---|
WAL026606 | Wave LED UV 3.5D | 3.5 Dioptre |
£721.20 inc VAT |
|
WAL026852 | Wave LED UV 5.0D | 5 Dioptre |
£741.60 inc VAT |
|
Couldn't load pickup availability
Can't find what you're looking for? Contact us for assistance!
Description
Description

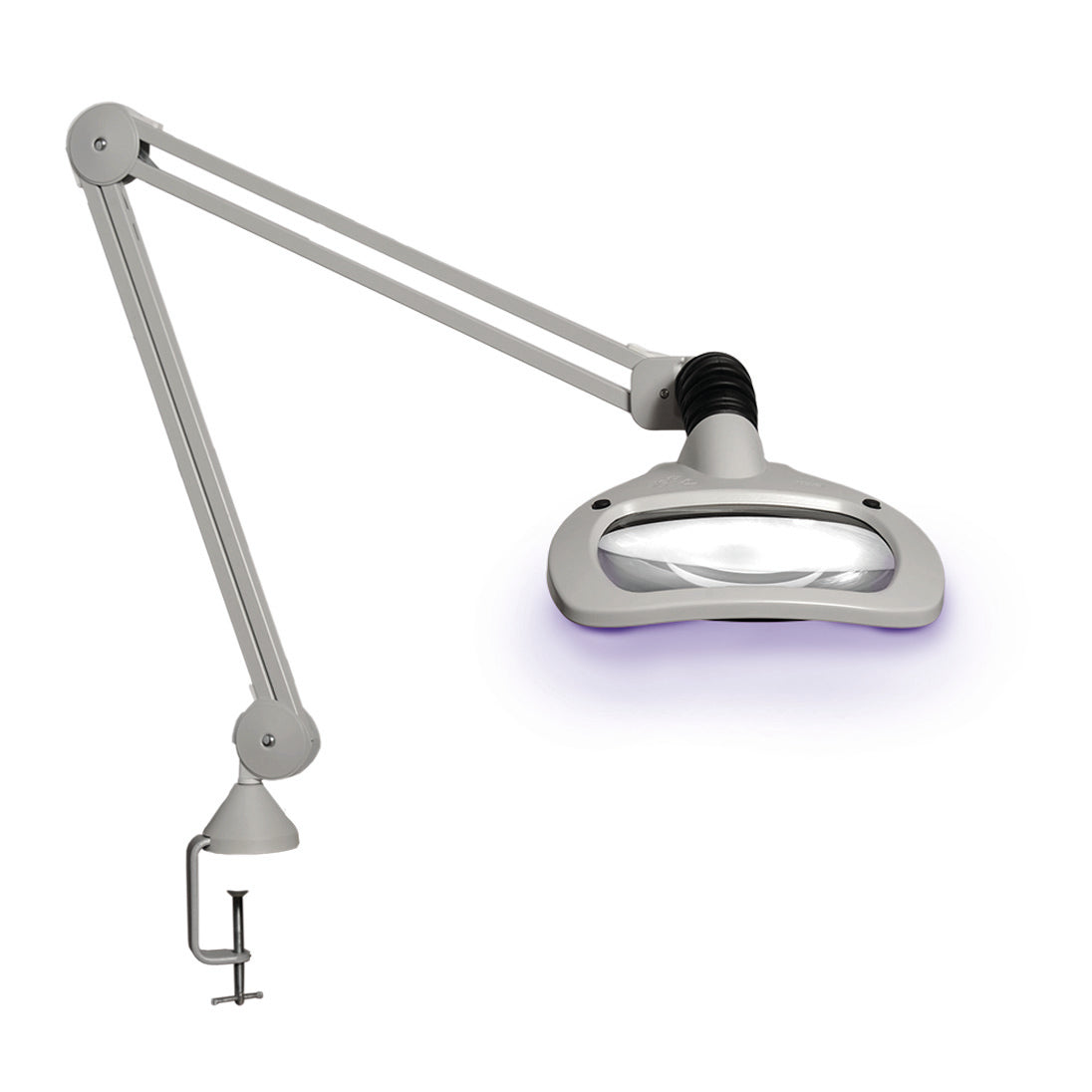

The quality of the WAVE LED starts with its high performance optical glass lens to provide superb clarity and less distortion than plastic lens bench magnifiers.

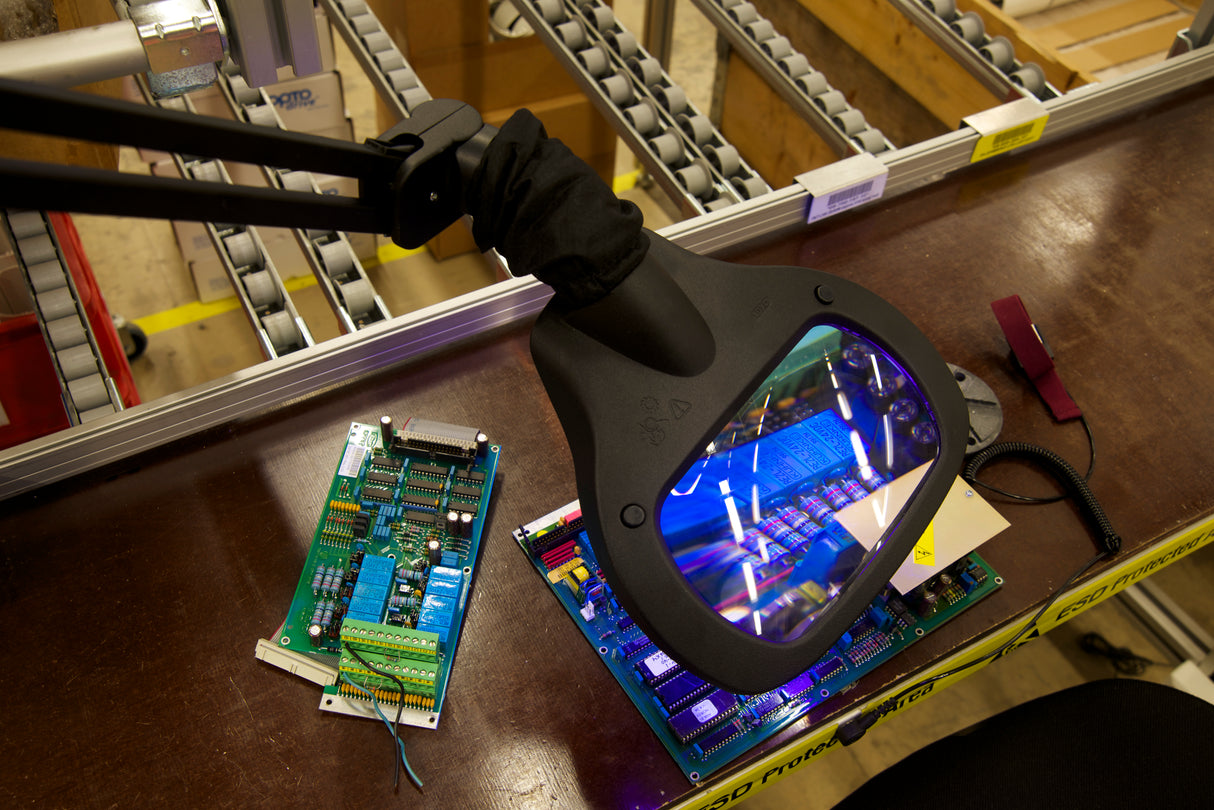

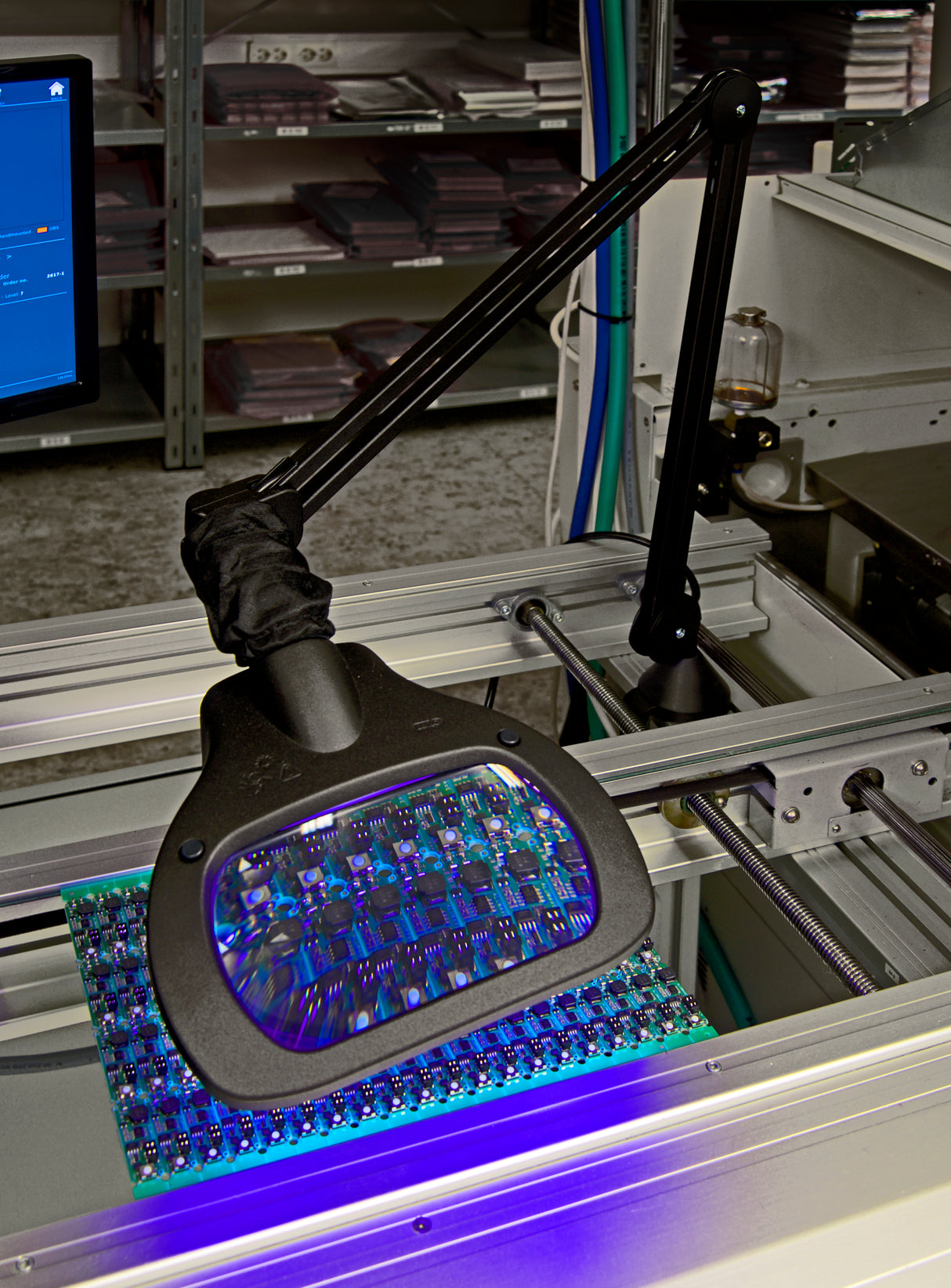

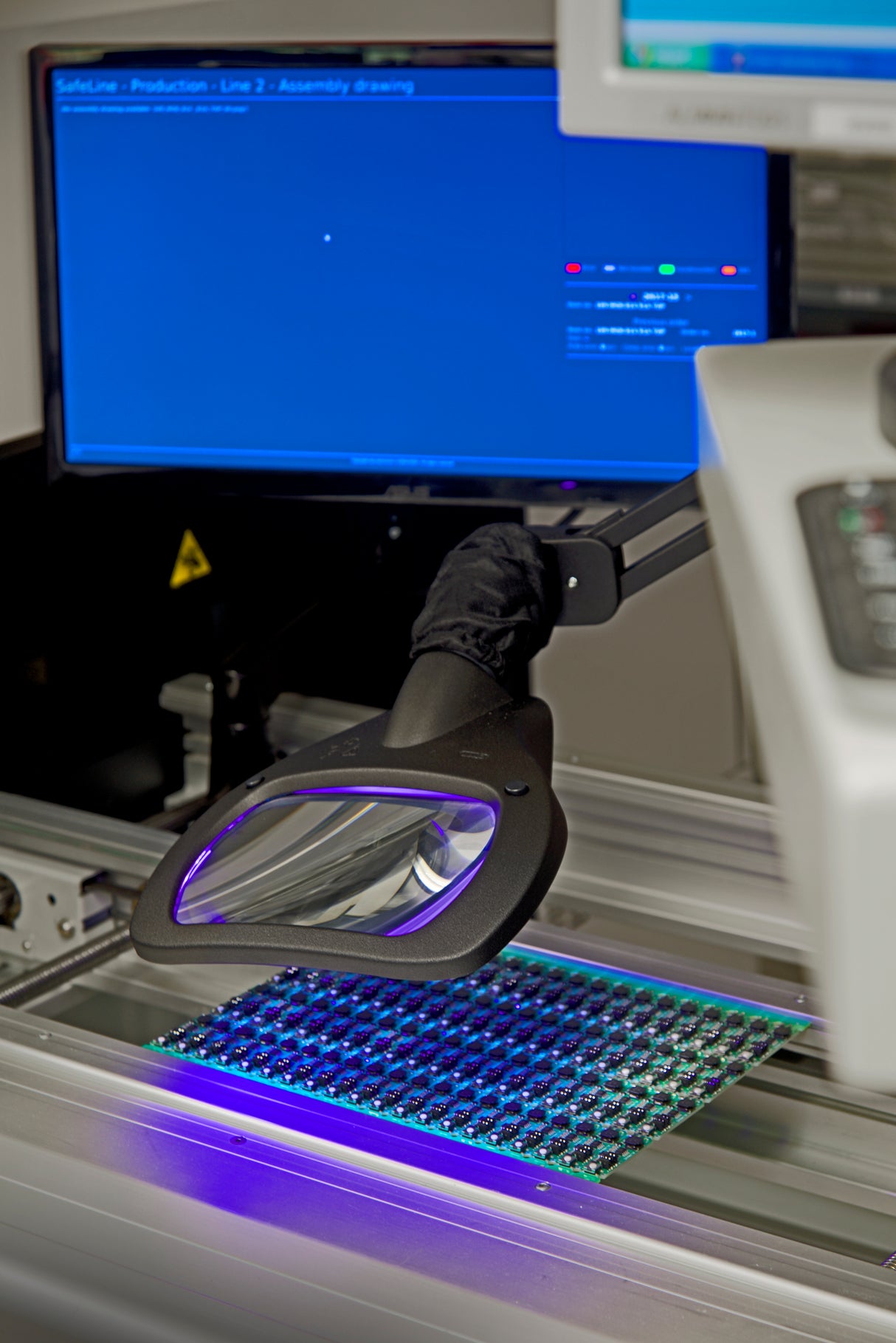

WAVE LED rectangular bench magnifier offers shadow-free magnification and 3D viewing with the independently controlled left and right illumination. The 3D-feature is especially useful when working with circuit boards and similar delicate objects in inspection and rework applications.
Wave LED UV offers shadow-free magnification and 3D illumination with selectable left/right light control.
Our Vision LUXO magnifiers are specially designed to always stay in the right position without drifting. The arms are balanced by spring systems which ensure smooth and easy positioning – no knobs to tighten, nothing to adjust.

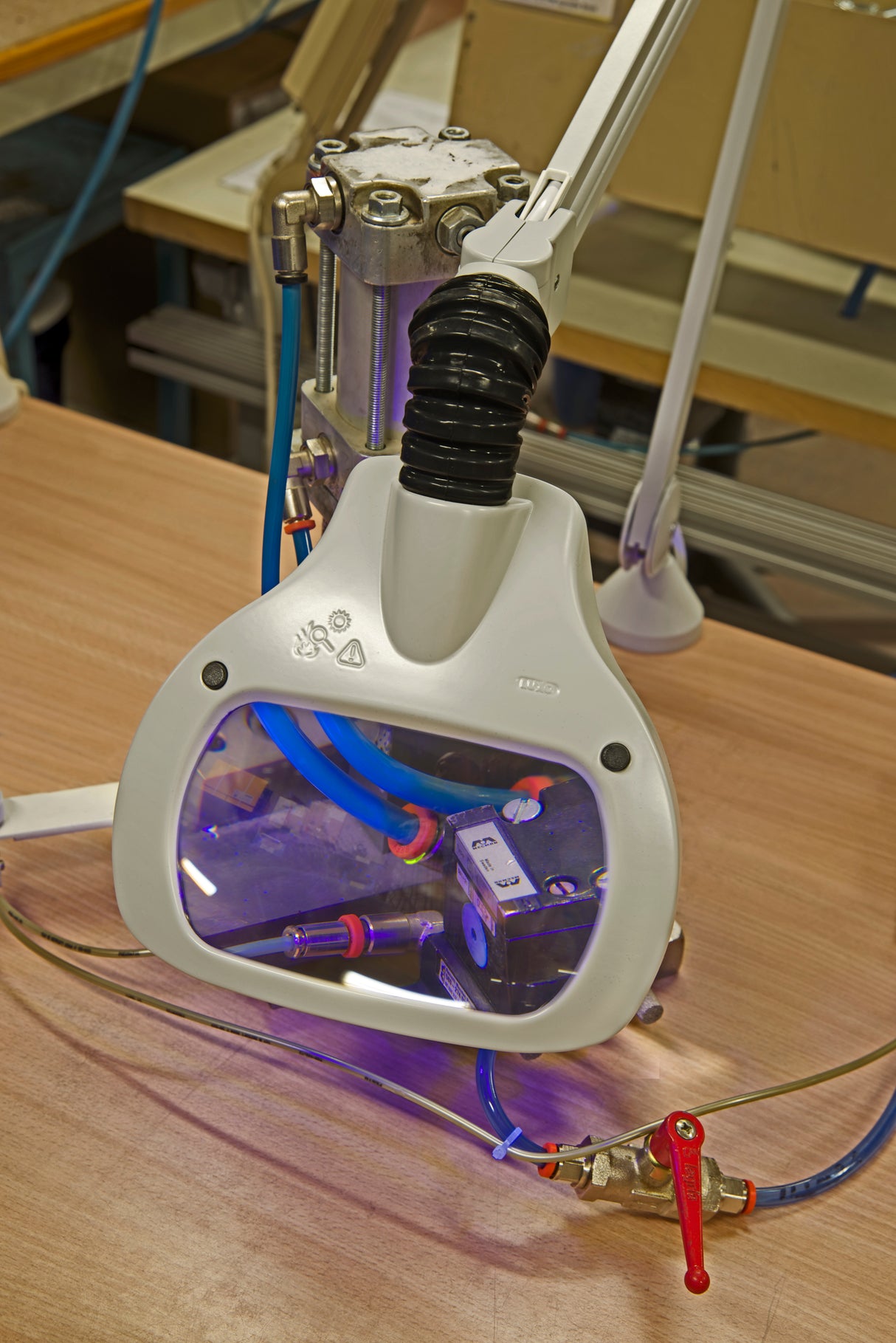

The fully-enclosed neck design is ideal for mechanical, electronics, circuit boards, dental and jewellery and other precision applications.
ESD and UV options available.
Call out features:
- 1.88 – 4.75x Magnification
- ESD and UV Variants
- Full HD Camera Option
Specification
Specification
Objective lens | 3.5D (1.88x), 5.0D (2.25x) |
---|---|
Lens size | White crown glass lens, 171mm x 114mm |
Type | Regtangular |
STAYS lens options | 4.0D (1x), 6.0D (1.5x), 10.0D (2.5x) |
Illumination | Selectable left / right illumination |
CRI | 90 colour rendition index/th> |
Brightness | 3830 lux 279mm focal length |
Body material | Steel arm, aluminium head |
Arm technology | Heavy-duty internal spring 41˝ (1050mm) parallel, three-pivot K-arm. |
Timer and dimming | Step dimming 0-50-100%. Auto shut-off function. |
Magnification
WAVE LED Magnification | |||
Primary lens dioptre | Secondary lens dioptre | Total magnification | Focal length |
---|---|---|---|
3.5 | 1.88x | 11" (285mm) | |
3.5 | 4.0 | 2.88x | 5" (130mm) |
3.5 | 10.0 | 4.38x | 3" (75mm) |
5.0 | 2.25x | 8" (200mm) | |
5.0 | 4.0 | 3.25x | 4.3" (110mm) |
5.0 | 6.0 | 3.75x | 3.5" (90mm) |
5.0 | 10.0 | 4.75x | 2" (50mm) |
5.0 | 10.0 | 4.75x | 2" (50mm) |
Maximum flexibility
perfect balance
3D illumination
selectable left/right light control.
